Grinding Ball For Cement Power Station

The Grinding Ball For Cement Power Station is specially designed to deliver high durability and extended service life in cement grinding operations. Made from premium steel, these grinding balls are engineered to withstand the high-impact and abrasive conditions commonly found in cement mills. Their superior toughness and wear resistance reduce the frequency of replacements, minimizing downtime and maintenance costs. This ensures that cement power stations can maintain continuous operations, ultimately improving overall productivity and reducing operational expenses

Contact Now E-Mail Telephone WhatsApp

Product Details

Introduction of the product

The Grinding Ball For Cement Power Station is designed to enhance grinding efficiency, ensuring superior performance during the grinding of raw materials and clinker. Their uniform hardness and smooth surface enable better energy transfer, improving particle breakdown and material throughput. This results in consistent and high-quality cement production with reduced energy consumption. By improving grinding efficiency, these balls help lower operational costs, making them a cost-effective solution for cement power stations looking to optimize their milling processes.

Application in grinding machines and areas

Machines	Industries
·Ball mills	·Mining industry
·SAG mills	·Power stations
·Tower mills	·Cement industry
·Coal grinding machine	·Steel Industry
·Bearing	·Chemical Industry
	·Metallurgical industry

Technical data

Chemical Composition (%)
Steel Specification	C	Mn	Si	Cr	S	P
40Cr	0.37-0.44	0.50-0.80	0.17-0.37	0.80-1.15	≤0.035	≤0.035
42CrMo	0.38-0.45	0.50-0.80	0.17-0.37	0.90-1.25	≤0.035	≤0.035
60Mn	0.57-0.65	0.70-1.00	0.17-0.37	≤0.25	≤0.035	≤0.035
65Mn	0.62-0.72	0.90-1.20	0.17-0.37	≤0.25	≤0.035	≤0.035
#45/C45	0.42-0.54	0.50-0.80	0.17-0.37	≤0.15	≤0.035	≤0.035
ZT-10	0.60-0.78	0.65-1.33	0.25-0.65	≤0.45	≤0.035	≤0.035
B2	0.70-0.92	0.70-1.00	0.17-0.37	0.40-0.70	≤0.035	≤0.035
B3	0.52-0.65	0.66-1.00	1.30-1.90	0.74-1.20	≤0.030	≤0.030
B4	0.65-0.75	0.50-0.70	1.20-1.40	0.85-1.00	≤0.025	≤0.025
B6	0.75-0.90	0.80-1.02	0.17-0.37	0.88-0.98	≤0.035	≤0.035
BU	0.95-1.05	0.95-1.05	0.15-0.35	0.45-0.55	≤0.035	≤0.035
BL	0.55-0.75	0.65-0.85	0.15-0.35	0.70-1.20	≤0.035	≤0.035
BG	0.90-1.05	0.35-0.95	0.15-0.35	1.00-1.70	≤0.035	≤0.035

Physical Features
Diameter (mm) (inches)	Surface Hardness (HRC)	Diameter Tolerance (mm)	Impact Value (J/cm²)	Breakage Rate (%)	Drop Test (times)
20 (0.79)	>60	+2.0 -1.0	≥12	≤1	>15000
25 (0.98)
30 (1.18)
40 (1.57)
50 (1.97)
60 (2.36)		+3.0 -1.5
65(5.56)
70 (2.76)
75 (3.00)
80 (3.15)
90 (3.54)
100 (3.94)		+4.0 -2.0
120 (4.72)	>58
125 (4.92)
140 (5.51)	>55	+5.0 -3.0
150 (5.91)

Quality Control Technology and Equipment

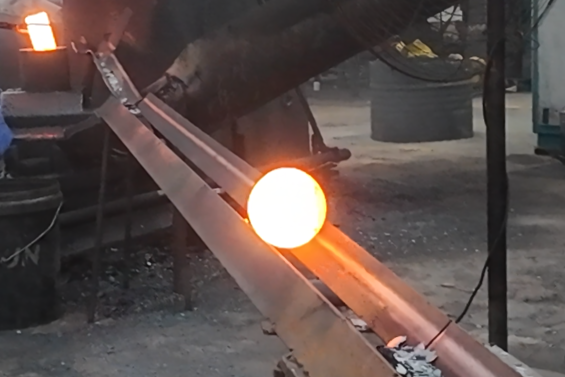

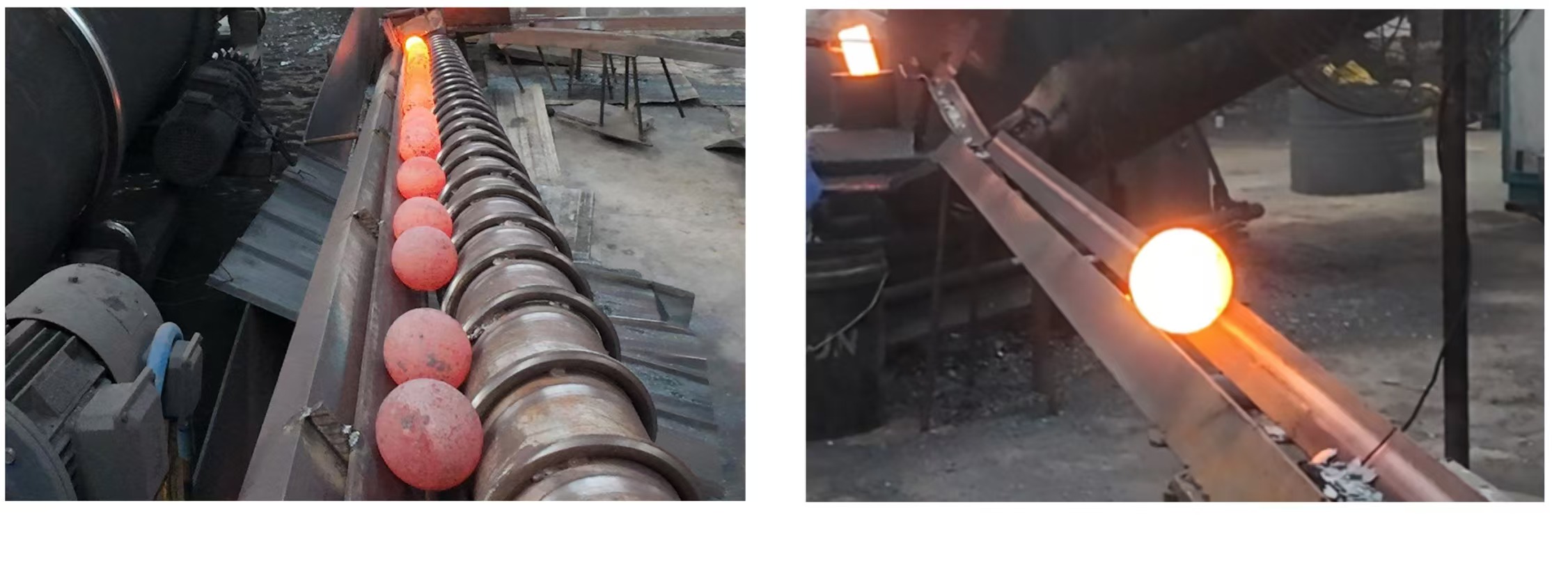

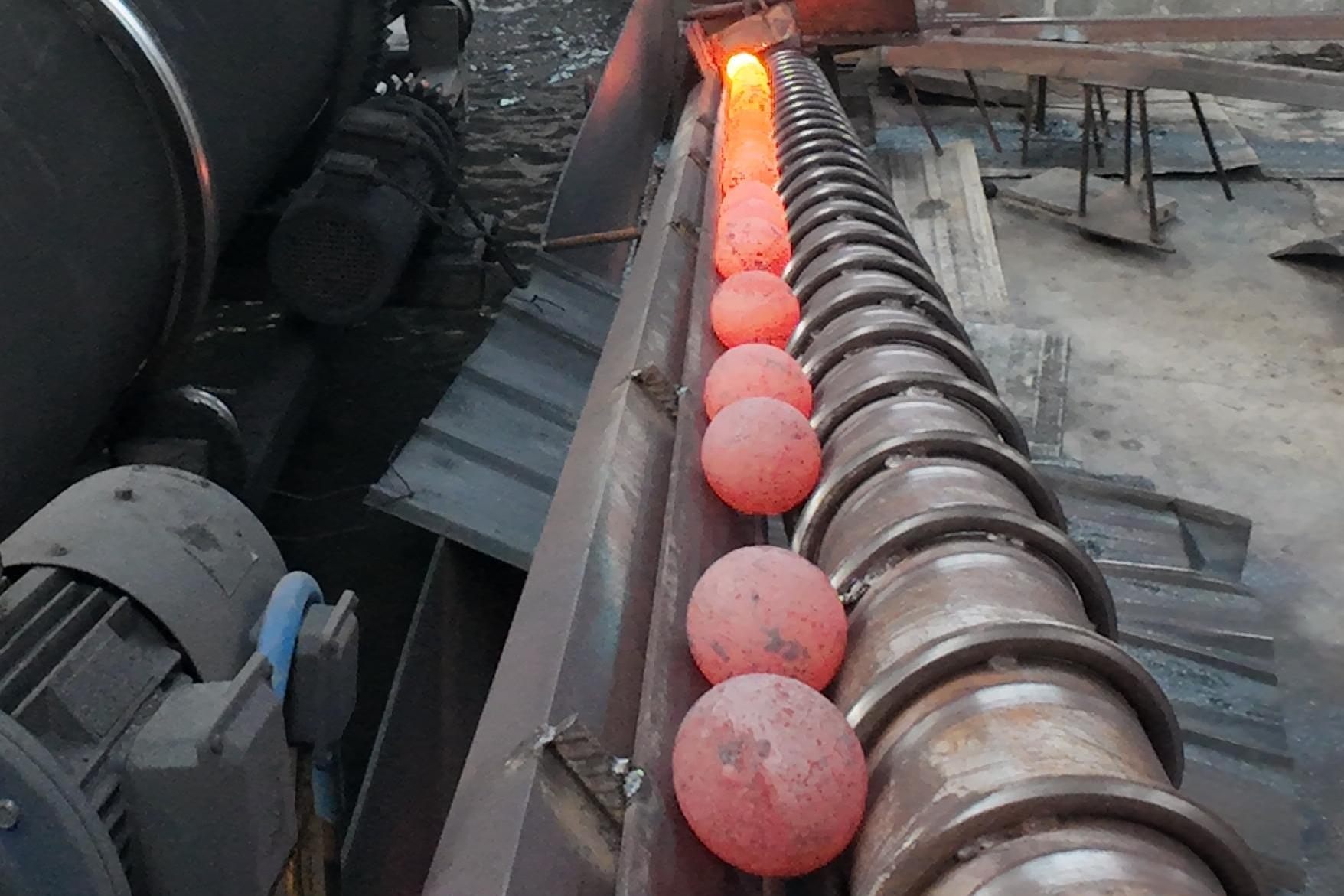

Plants and Production Equipment

Plants and Production Equipment

Exhibitions

Exhibitions

Why choose us

To meet the unique demands of cement power stations, the Grinding Ball For Cement Power Station can be customized in terms of size, hardness, and material composition. Whether you are grinding softer materials or harder clinker, these balls can be tailored to deliver the ideal balance of wear resistance and grinding efficiency. This customization ensures that the grinding balls provide optimal performance in the specific milling conditions of your cement power station, contributing to more efficient and cost-effective cement production.
