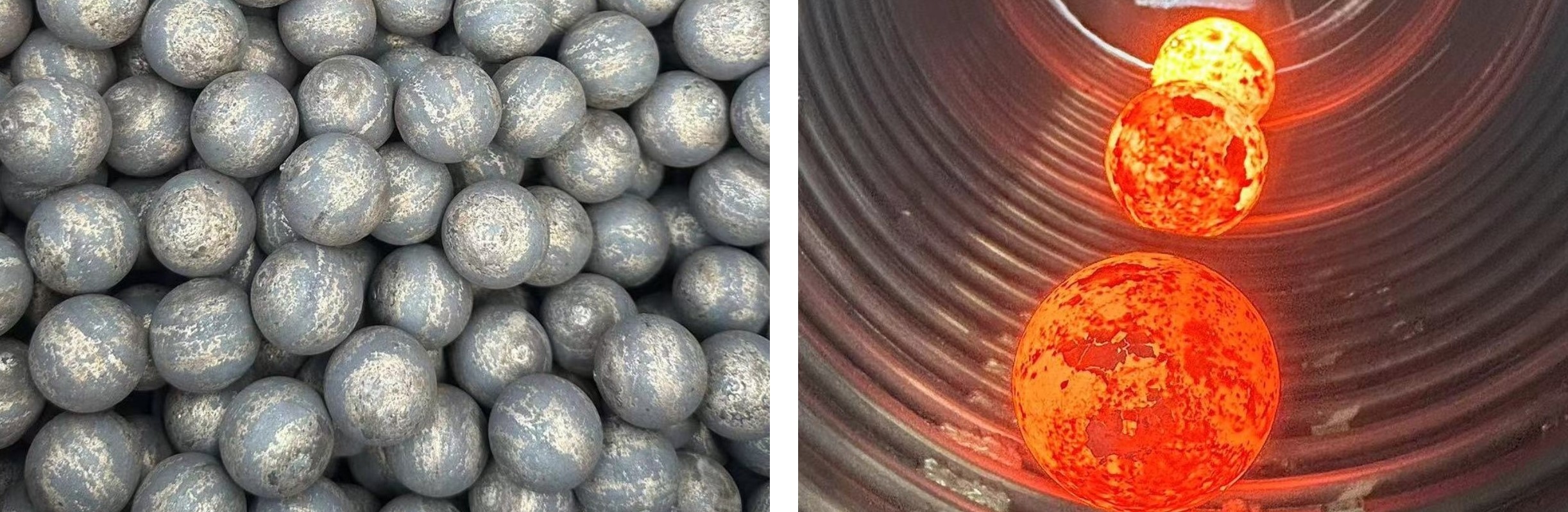

Hot Rolled Ball
Hot Rolled Ball is a durable steel ball manufactured using advanced hot rolling technology. It is extensively applied in grinding systems across mining, power generation, and cement industries. The product offers excellent wear resistance, minimal breakage, and high toughness, with various sizes available to suit different requirements.
Hot Rolled Ball Product Details

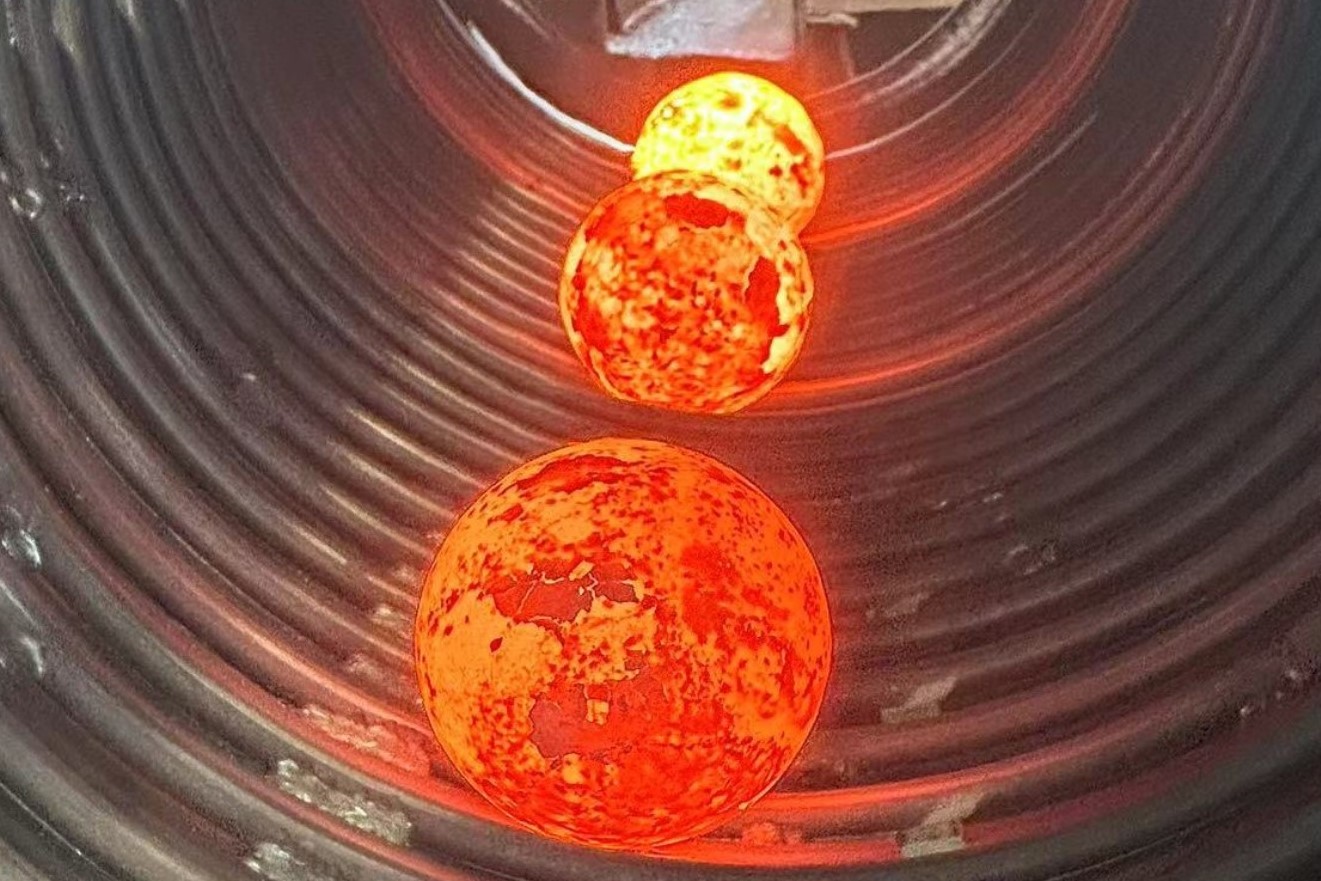

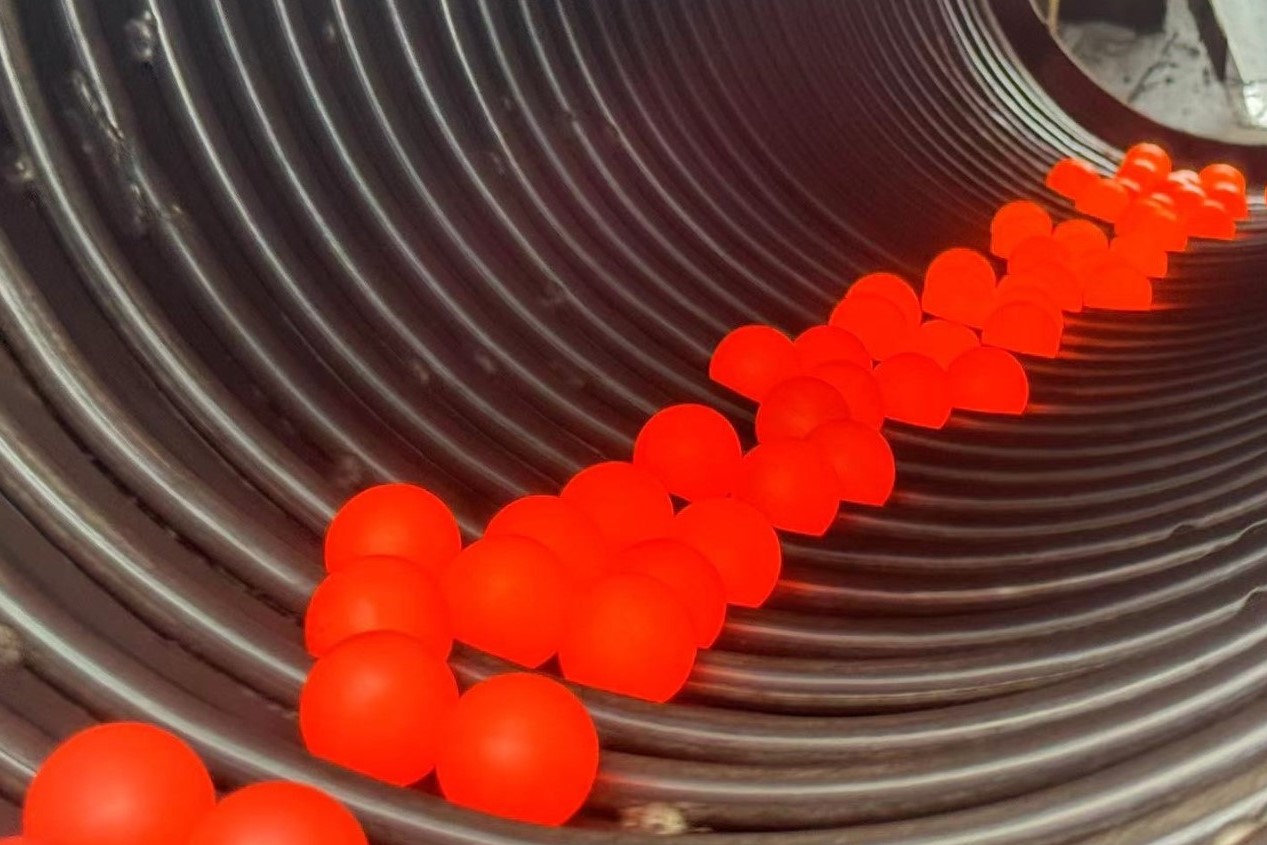

Process: Advanced hot rolling technology, one-time forming with uniform hardness.
Material: High-quality alloy steel with excellent wear resistance and impact toughness.
Features: High hardness, low breakage rate, and long service life.
Size: Diameter ranges from 20mm to 150mm, customizable.
Applications: Widely used in mining, thermal power, cement, and chemical industries.
Packaging: Supplied in ton bags or steel drums for safe and convenient handling.
Application in grinding machines and areas
Machines | Industries |
·Ball mills | ·Mining industry |
·Power stations | |
·Tower mills | ·Cement industry |
·Coal grinding machine | ·Steel Industry |
·Bearing | ·Chemical Industry |
·Metallurgical industry |
Technical data
Chemical Composition (%) | ||||||
Steel Specification | C | Mn | Si | Cr | S | P |
40Cr | 0.37-0.44 | 0.50-0.80 | 0.17-0.37 | 0.80-1.15 | ≤0.035 | ≤0.035 |
42CrMo | 0.38-0.45 | 0.50-0.80 | 0.17-0.37 | 0.90-1.25 | ≤0.035 | ≤0.035 |
60Mn | 0.57-0.65 | 0.70-1.00 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 |
65Mn | 0.62-0.72 | 0.90-1.20 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 |
#45/C45 | 0.42-0.54 | 0.50-0.80 | 0.17-0.37 | ≤0.15 | ≤0.035 | ≤0.035 |
ZT-10 | 0.60-0.78 | 0.65-1.33 | 0.25-0.65 | ≤0.45 | ≤0.035 | ≤0.035 |
B2 | 0.70-0.92 | 0.70-1.00 | 0.17-0.37 | 0.40-0.70 | ≤0.035 | ≤0.035 |
B3 | 0.52-0.65 | 0.66-1.00 | 1.30-1.90 | 0.74-1.20 | ≤0.030 | ≤0.030 |
B4 | 0.65-0.75 | 0.50-0.70 | 1.20-1.40 | 0.85-1.00 | ≤0.025 | ≤0.025 |
B6 | 0.75-0.90 | 0.80-1.02 | 0.17-0.37 | 0.88-0.98 | ≤0.035 | ≤0.035 |
BU | 0.95-1.05 | 0.95-1.05 | 0.15-0.35 | 0.45-0.55 | ≤0.035 | ≤0.035 |
BL | 0.55-0.75 | 0.65-0.85 | 0.15-0.35 | 0.70-1.20 | ≤0.035 | ≤0.035 |
BG | 0.90-1.05 | 0.35-0.95 | 0.15-0.35 | 1.00-1.70 | ≤0.035 | ≤0.035 |
Physical Features | |||||
Diameter (mm) (inches) | Surface Hardness (HRC) | Diameter Tolerance (mm) | Impact Value (J/cm²) | Breakage Rate (%) | Drop Test (times) |
20 (0.79) | >60 | +2.0 -1.0 | ≥12 | ≤1 | >15000 |
25 (0.98) | |||||
30 (1.18) | |||||
40 (1.57) | |||||
50 (1.97) | |||||
60 (2.36) | +3.0 -1.5 | ||||
65(5.56) | |||||
70 (2.76) | |||||
75 (3.00) | |||||
80 (3.15) | |||||
90 (3.54) | |||||
100 (3.94) | +4.0 -2.0 | ||||
120 (4.72) | >58 | ||||
125 (4.92) | |||||
140 (5.51) | >55 | +5.0 -3.0 | |||
150 (5.91) |
Quality Control Technology and Equipment
Plants and Production Equipment
Exhibitions
Why choose us
Here are the key advantages of Jinan Zengtai Heavy Industry Co., Ltd.:
High-Quality Products: Durable steel balls with excellent wear resistance.
Large Capacity: Annual output of 120,000 tons for reliable supply.
Global Reach: Exported to 50+ countries.
Quick Delivery: Large inventory for fast shipping.
Technical Support: Customized solutions and expertise.
Strict Quality Control: Products meet international standards.
Innovation: Focus on sustainability and continuous improvement.
