Grinding Ball For Fine Grinding

The Grinding Ball For Fine Grinding is designed to provide superior hardness, making it ideal for efficient fine grinding applications. With a high level of hardness and a smooth surface finish, these grinding balls ensure optimal energy transfer during the milling process, improving particle size reduction and maintaining consistent performance. Their excellent wear resistance minimizes the frequency of replacements, reducing operational downtime and ensuring continuous, efficient grinding. This makes them an ideal choice for industries that require precise, fine grinding, such as in the production of fine powders and materials.

Contact Now E-Mail Telephone WhatsApp

Product Details

Introduction of the product

The Grinding Ball For Fine Grinding is specifically engineered to optimize grinding performance. Their uniform hardness and smooth surface help in achieving consistent, fine particle sizes while minimizing energy consumption. These balls are designed to efficiently break down materials into finer particles, providing enhanced throughput and improved product quality. Their performance in fine grinding applications contributes to better overall mill efficiency, allowing companies to increase production while lowering operating costs and energy usage.

Grinding Ball For Fine Grinding

Application in grinding machines and areas

Machines	Industries
·Ball mills	·Mining industry
·SAG mills	·Power stations
·Tower mills	·Cement industry
·Coal grinding machine	·Steel Industry
·Bearing	·Chemical Industry
	·Metallurgical industry

Technical data

Chemical Composition (%)
Steel Specification	C	Mn	Si	Cr	S	P
40Cr	0.37-0.44	0.50-0.80	0.17-0.37	0.80-1.15	≤0.035	≤0.035
42CrMo	0.38-0.45	0.50-0.80	0.17-0.37	0.90-1.25	≤0.035	≤0.035
60Mn	0.57-0.65	0.70-1.00	0.17-0.37	≤0.25	≤0.035	≤0.035
65Mn	0.62-0.72	0.90-1.20	0.17-0.37	≤0.25	≤0.035	≤0.035
#45/C45	0.42-0.54	0.50-0.80	0.17-0.37	≤0.15	≤0.035	≤0.035
ZT-10	0.60-0.78	0.65-1.33	0.25-0.65	≤0.45	≤0.035	≤0.035
B2	0.70-0.92	0.70-1.00	0.17-0.37	0.40-0.70	≤0.035	≤0.035
B3	0.52-0.65	0.66-1.00	1.30-1.90	0.74-1.20	≤0.030	≤0.030
B4	0.65-0.75	0.50-0.70	1.20-1.40	0.85-1.00	≤0.025	≤0.025
B6	0.75-0.90	0.80-1.02	0.17-0.37	0.88-0.98	≤0.035	≤0.035
BU	0.95-1.05	0.95-1.05	0.15-0.35	0.45-0.55	≤0.035	≤0.035
BL	0.55-0.75	0.65-0.85	0.15-0.35	0.70-1.20	≤0.035	≤0.035
BG	0.90-1.05	0.35-0.95	0.15-0.35	1.00-1.70	≤0.035	≤0.035

Physical Features
Diameter (mm) (inches)	Surface Hardness (HRC)	Diameter Tolerance (mm)	Impact Value (J/cm²)	Breakage Rate (%)	Drop Test (times)
20 (0.79)	>60	+2.0 -1.0	≥12	≤1	>15000
25 (0.98)
30 (1.18)
40 (1.57)
50 (1.97)
60 (2.36)		+3.0 -1.5
65(5.56)
70 (2.76)
75 (3.00)
80 (3.15)
90 (3.54)
100 (3.94)		+4.0 -2.0
120 (4.72)	>58
125 (4.92)
140 (5.51)	>55	+5.0 -3.0
150 (5.91)

Quality Control Technology and Equipment

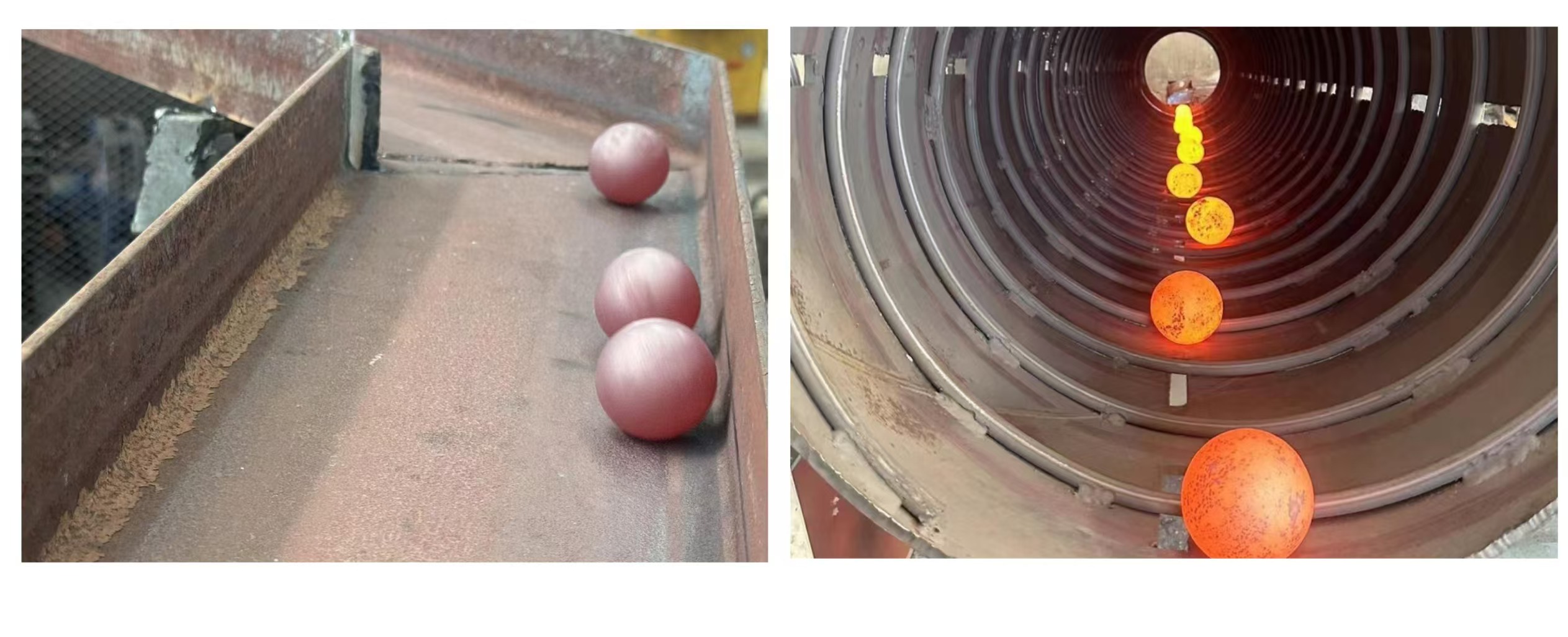

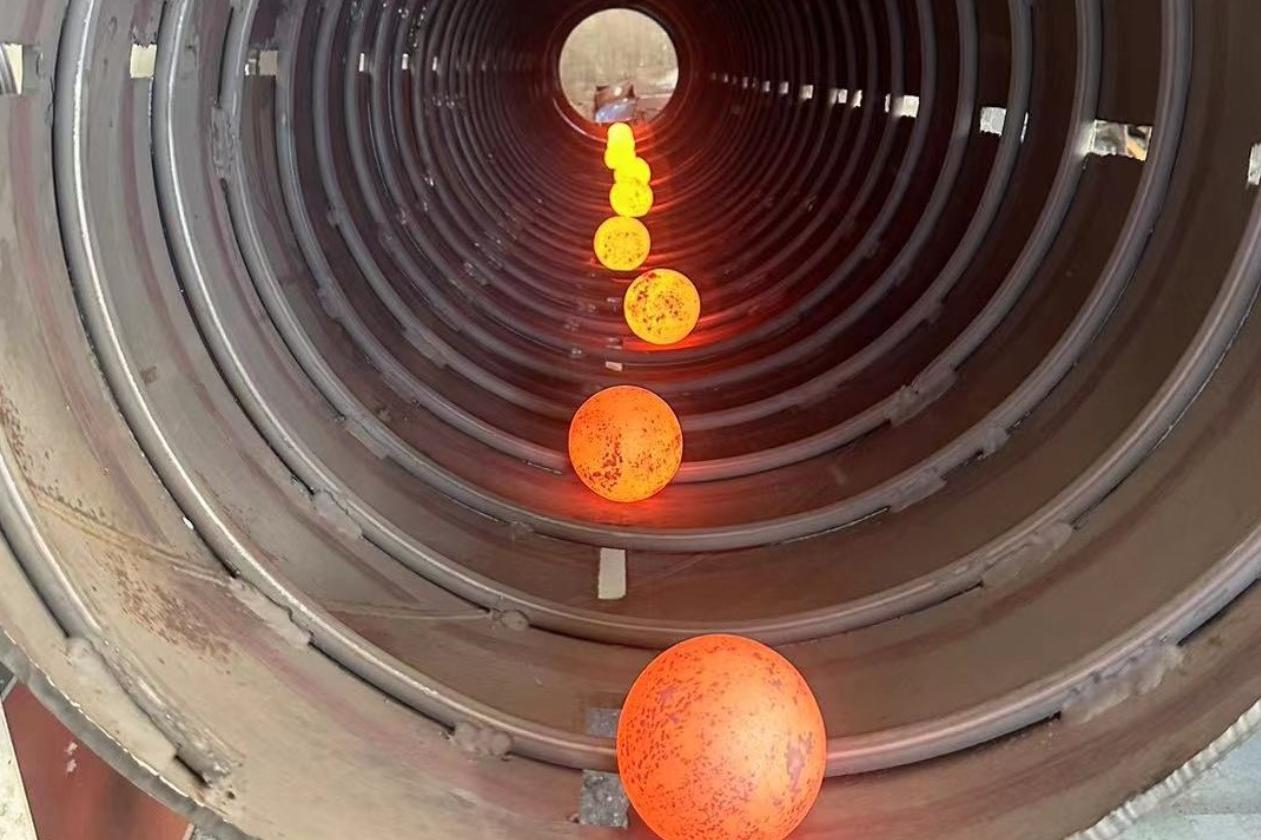

Plants and Production Equipment

Plants and Production Equipment

Exhibitions

Exhibitions

Why choose us

The Grinding Ball For Fine Grinding can be customized in terms of size, hardness, and material composition to meet the specific needs of different fine grinding applications. Whether you're processing soft or hard materials, these balls can be tailored to offer the best balance of wear resistance, hardness, and grinding efficiency. This customization ensures that the grinding media will perform optimally under varying conditions, contributing to better grinding results, improved productivity, and lower operational costs.
