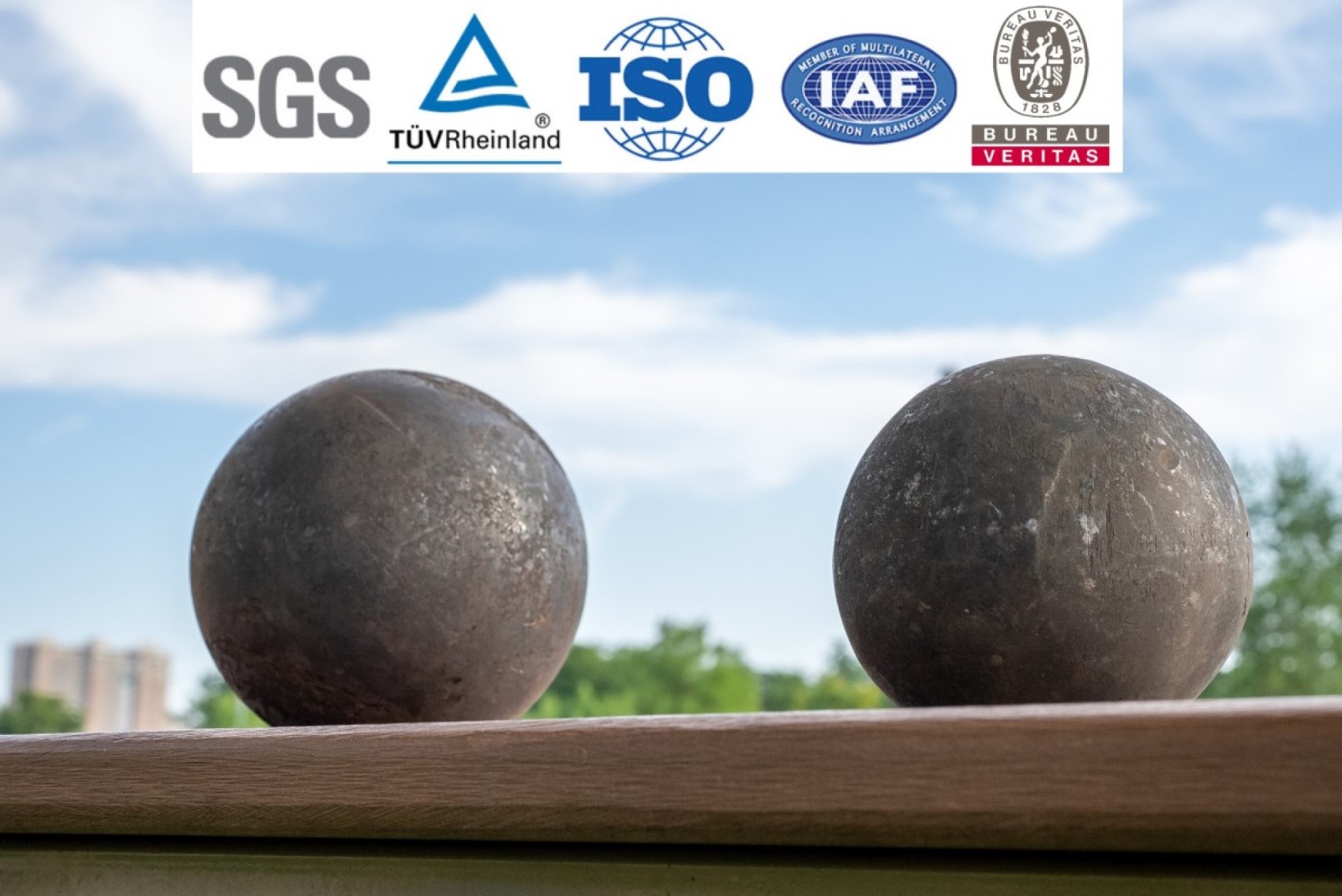

Grinding Ball For SAG Mill

The Grinding Ball For SAG Mill is specifically designed to withstand the high impact forces encountered in SAG milling operations. Made from high-quality steel and alloy materials, these grinding balls offer superior toughness, enabling them to maintain structural integrity under the most challenging conditions. Their high impact resistance ensures stable performance throughout the grinding process, reducing the risk of breakage and maximizing the efficiency of SAG mills.

Contact Now E-Mail Telephone WhatsApp

Product Details

Introduction of the product

Designed to improve grinding efficiency, the Grinding Ball For SAG Mill ensures that the milling process is carried out smoothly and effectively. The balls are manufactured to precise specifications, ensuring uniform size, hardness, and surface finish, which results in a consistent grinding action. This leads to enhanced material breakage and finer particle size, ultimately improving the overall throughput and reducing energy consumption in SAG milling operations.

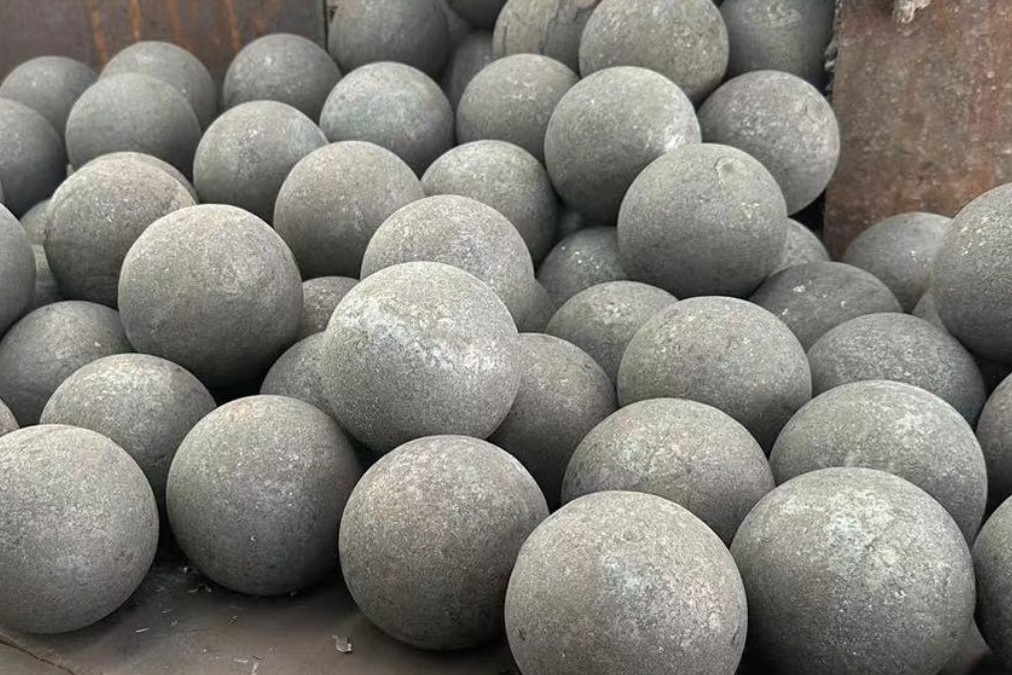

Grinding Ball For SAG Mill

Application in grinding machines and areas

Machines	Industries
·Ball mills	·Mining industry
·SAG mills	·Power stations
·Tower mills	·Cement industry
·Coal grinding machine	·Steel Industry
·Bearing	·Chemical Industry
	·Metallurgical industry

Technical data

Chemical Composition (%)
Steel Specification	C	Mn	Si	Cr	S	P
40Cr	0.37-0.44	0.50-0.80	0.17-0.37	0.80-1.15	≤0.035	≤0.035
42CrMo	0.38-0.45	0.50-0.80	0.17-0.37	0.90-1.25	≤0.035	≤0.035
60Mn	0.57-0.65	0.70-1.00	0.17-0.37	≤0.25	≤0.035	≤0.035
65Mn	0.62-0.72	0.90-1.20	0.17-0.37	≤0.25	≤0.035	≤0.035
#45/C45	0.42-0.54	0.50-0.80	0.17-0.37	≤0.15	≤0.035	≤0.035
ZT-10	0.60-0.78	0.65-1.33	0.25-0.65	≤0.45	≤0.035	≤0.035
B2	0.70-0.92	0.70-1.00	0.17-0.37	0.40-0.70	≤0.035	≤0.035
B3	0.52-0.65	0.66-1.00	1.30-1.90	0.74-1.20	≤0.030	≤0.030
B4	0.65-0.75	0.50-0.70	1.20-1.40	0.85-1.00	≤0.025	≤0.025
B6	0.75-0.90	0.80-1.02	0.17-0.37	0.88-0.98	≤0.035	≤0.035
BU	0.95-1.05	0.95-1.05	0.15-0.35	0.45-0.55	≤0.035	≤0.035
BL	0.55-0.75	0.65-0.85	0.15-0.35	0.70-1.20	≤0.035	≤0.035
BG	0.90-1.05	0.35-0.95	0.15-0.35	1.00-1.70	≤0.035	≤0.035

Physical Features
Diameter (mm) (inches)	Surface Hardness (HRC)	Diameter Tolerance (mm)	Impact Value (J/cm²)	Breakage Rate (%)	Drop Test (times)
20 (0.79)	>60	+2.0 -1.0	≥12	≤1	>15000
25 (0.98)
30 (1.18)
40 (1.57)
50 (1.97)
60 (2.36)		+3.0 -1.5
65(5.56)
70 (2.76)
75 (3.00)
80 (3.15)
90 (3.54)
100 (3.94)		+4.0 -2.0
120 (4.72)	>58
125 (4.92)
140 (5.51)	>55	+5.0 -3.0
150 (5.91)

Quality Control Technology and Equipment

Plants and Production Equipment

Plants and Production Equipment

Exhibitions

Exhibitions

Why choose us

The Grinding Ball For SAG Mill can be customized to meet the specific demands of different SAG milling applications. Whether you require balls with higher abrasion resistance, larger sizes, or different alloy compositions, these balls can be tailored to suit your milling needs. This customization allows you to optimize the performance of your SAG mills based on your operational conditions, helping to enhance productivity and reduce operational costs.
