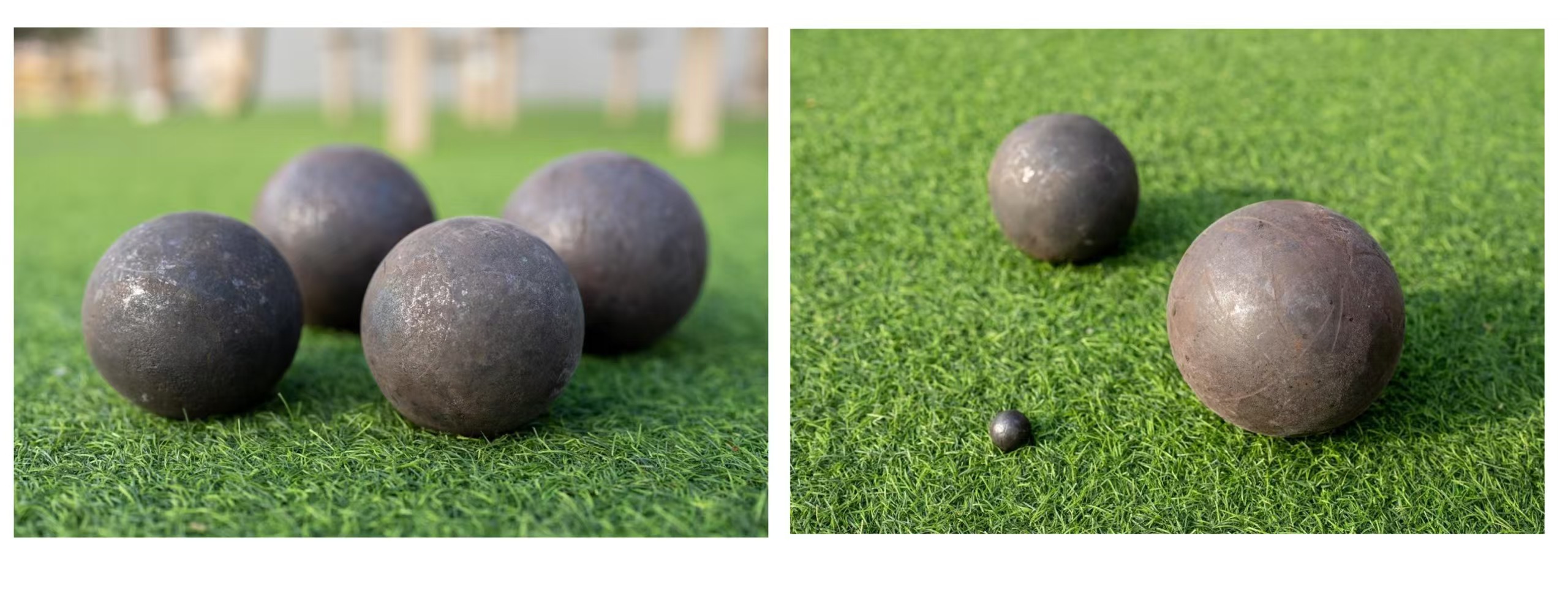

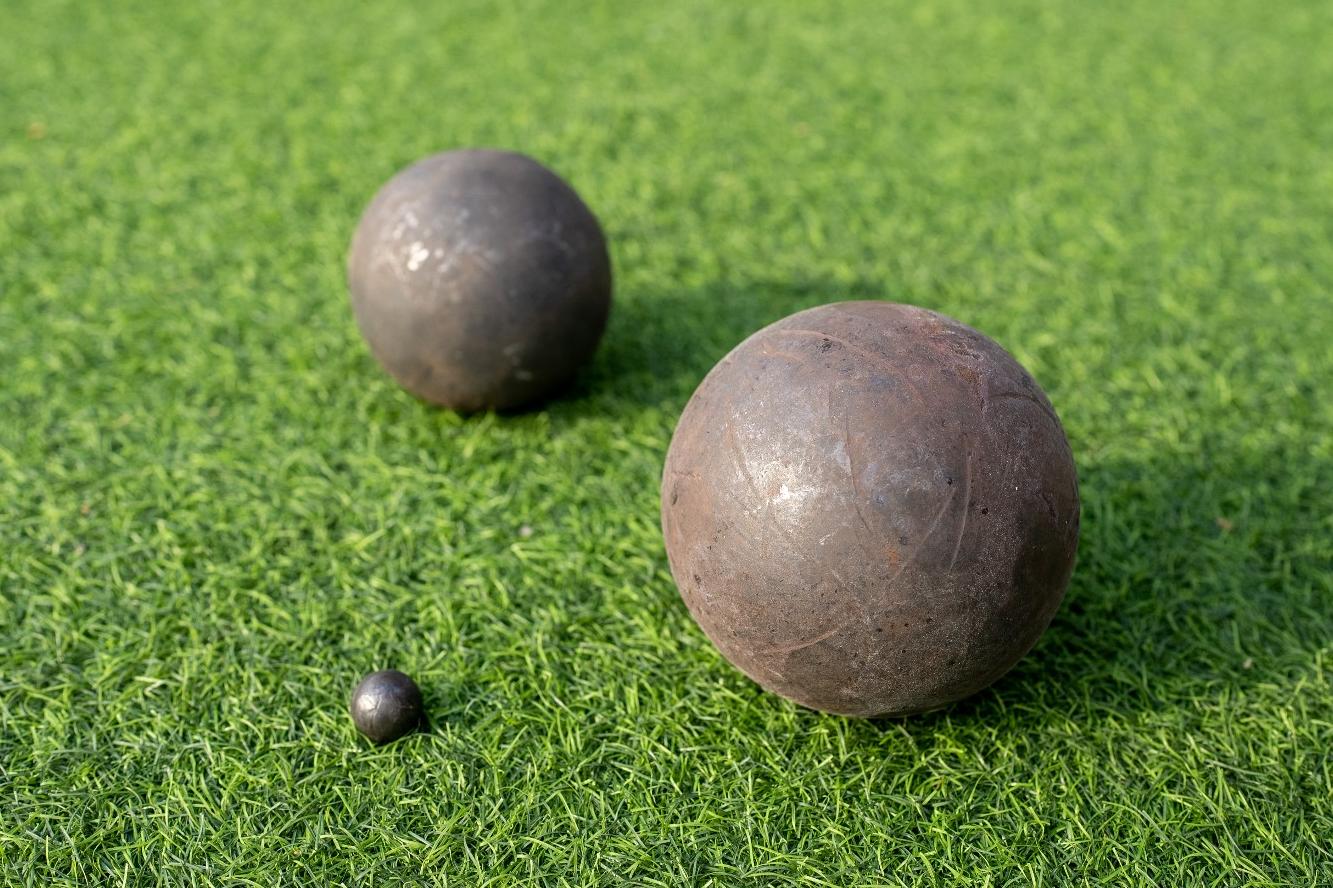

SAG Mill Forged Grinding Ball

The SAG Mill Forged Grinding Ball is crafted from high-quality forged steel, designed to offer exceptional durability and wear resistance in grinding operations. These balls are engineered to withstand the heavy impact and abrasion conditions commonly encountered in SAG (Semi-Autogenous Grinding) mills. With their superior hardness and toughness, they ensure a longer service life, reducing the frequency of replacements and minimizing downtime. This increased durability results in cost savings for industries such as mining and power generation, where continuous and efficient milling is crucial.

Contact Now E-Mail Telephone WhatsApp

Product Details

Introduction of the product

The SAG Mill Forged Grinding Ball is specifically designed to optimize grinding efficiency in SAG mills. Their consistent hardness and shape provide better energy transfer during the grinding process, allowing for a smoother and more efficient breakdown of ore and materials. The forged design minimizes wear, ensuring that the grinding balls maintain their performance over time and contribute to improved throughput. This enhances the overall efficiency of SAG mills, helping companies achieve better results with reduced energy consumption and operating costs.

Application in grinding machines and areas

Machines	Industries
·Ball mills	·Mining industry
·SAG mills	·Power stations
·Tower mills	·Cement industry
·Coal grinding machine	·Steel Industry
·Bearing	·Chemical Industry
	·Metallurgical industry

Technical data

Chemical Composition (%)
Steel Specification	C	Mn	Si	Cr	S	P
40Cr	0.37-0.44	0.50-0.80	0.17-0.37	0.80-1.15	≤0.035	≤0.035
42CrMo	0.38-0.45	0.50-0.80	0.17-0.37	0.90-1.25	≤0.035	≤0.035
60Mn	0.57-0.65	0.70-1.00	0.17-0.37	≤0.25	≤0.035	≤0.035
65Mn	0.62-0.72	0.90-1.20	0.17-0.37	≤0.25	≤0.035	≤0.035
#45/C45	0.42-0.54	0.50-0.80	0.17-0.37	≤0.15	≤0.035	≤0.035
ZT-10	0.60-0.78	0.65-1.33	0.25-0.65	≤0.45	≤0.035	≤0.035
B2	0.70-0.92	0.70-1.00	0.17-0.37	0.40-0.70	≤0.035	≤0.035
B3	0.52-0.65	0.66-1.00	1.30-1.90	0.74-1.20	≤0.030	≤0.030
B4	0.65-0.75	0.50-0.70	1.20-1.40	0.85-1.00	≤0.025	≤0.025
B6	0.75-0.90	0.80-1.02	0.17-0.37	0.88-0.98	≤0.035	≤0.035
BU	0.95-1.05	0.95-1.05	0.15-0.35	0.45-0.55	≤0.035	≤0.035
BL	0.55-0.75	0.65-0.85	0.15-0.35	0.70-1.20	≤0.035	≤0.035
BG	0.90-1.05	0.35-0.95	0.15-0.35	1.00-1.70	≤0.035	≤0.035

Physical Features
Diameter (mm) (inches)	Surface Hardness (HRC)	Diameter Tolerance (mm)	Impact Value (J/cm²)	Breakage Rate (%)	Drop Test (times)
20 (0.79)	>60	+2.0 -1.0	≥12	≤1	>15000
25 (0.98)
30 (1.18)
40 (1.57)
50 (1.97)
60 (2.36)		+3.0 -1.5
65(5.56)
70 (2.76)
75 (3.00)
80 (3.15)
90 (3.54)
100 (3.94)		+4.0 -2.0
120 (4.72)	>58
125 (4.92)
140 (5.51)	>55	+5.0 -3.0
150 (5.91)

Quality Control Technology and Equipment

Plants and Production Equipment

Plants and Production Equipment

Exhibitions

Exhibitions

Why choose us

The SAG Mill Forged Grinding Ball offers versatility and can be customized to meet the specific needs of various milling processes. Available in different sizes and hardness levels, these grinding balls can be tailored to suit different mill configurations and material types. Whether for coarse or fine grinding, the SAG Mill Forged Grinding Ball can be adjusted to provide the optimal balance of durability and grinding performance. This adaptability makes it an excellent choice for industries requiring reliable and efficient grinding media across a wide range of SAG milling applications.
