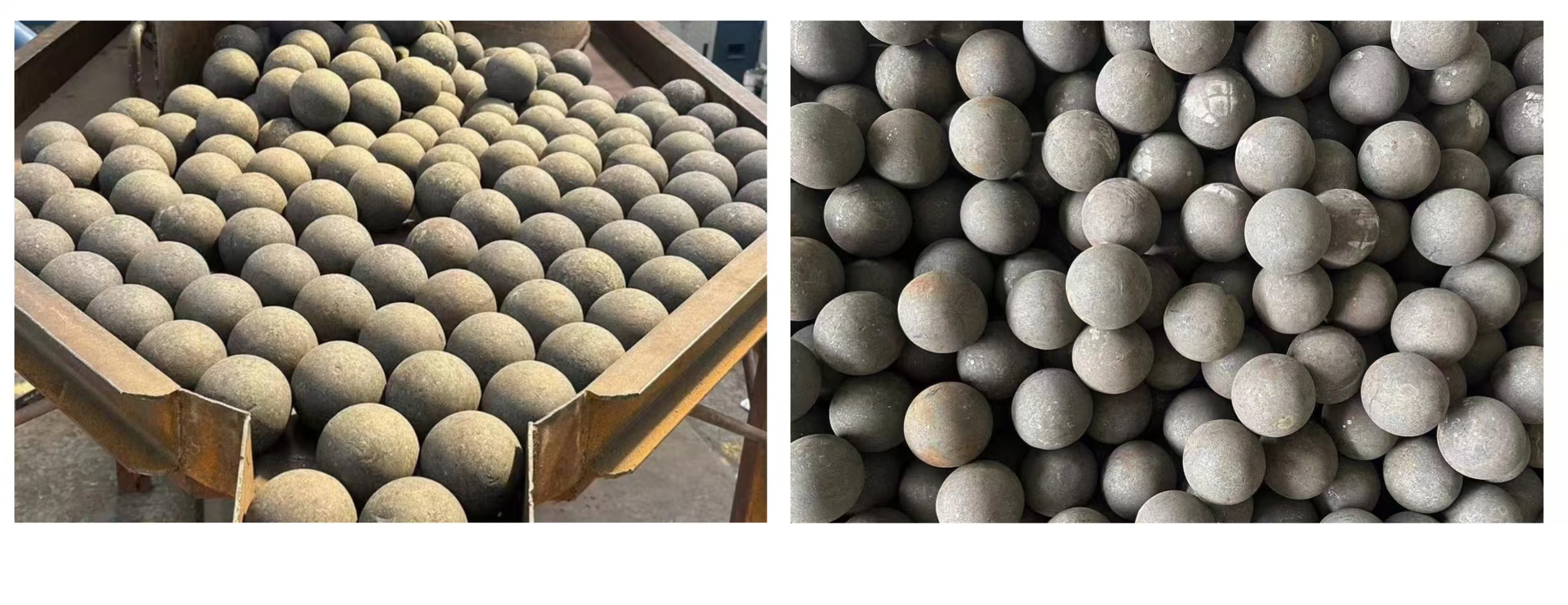

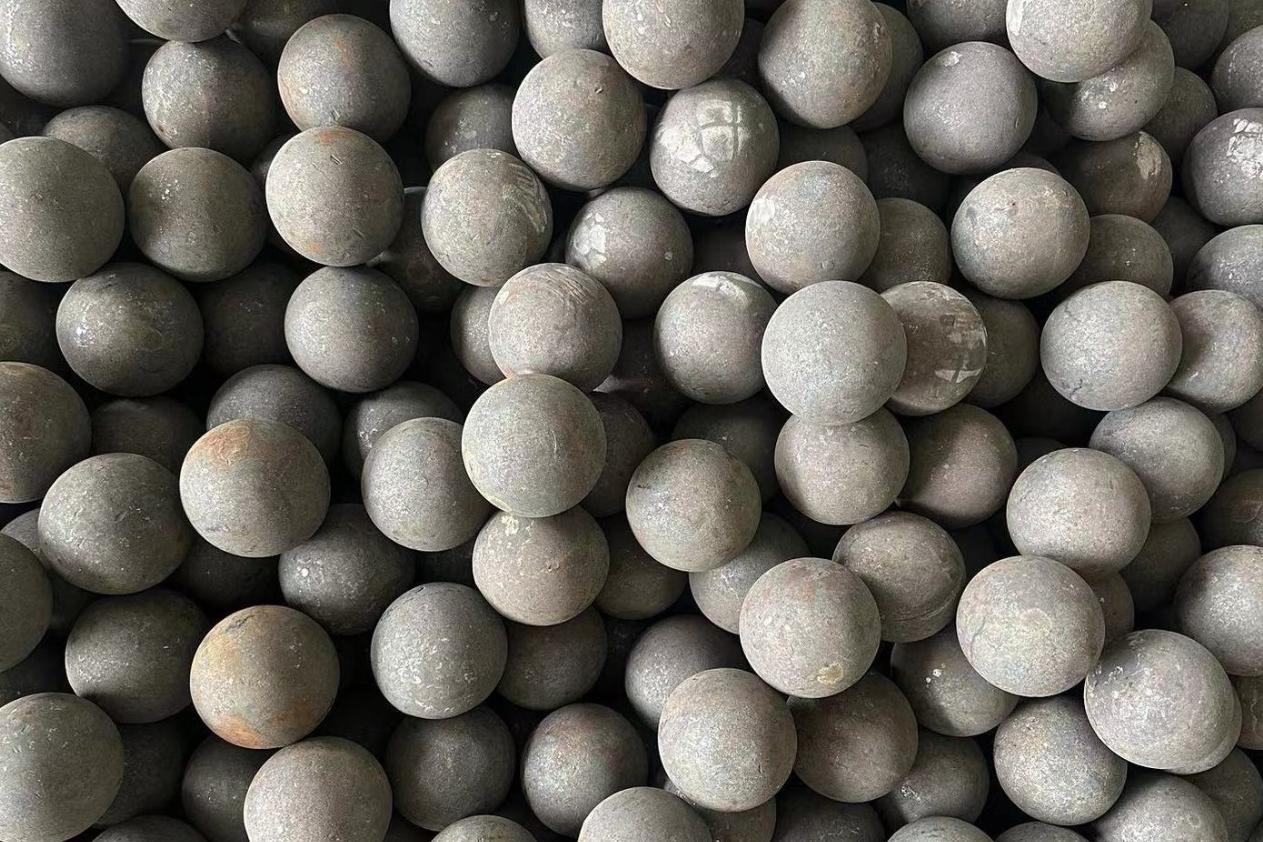

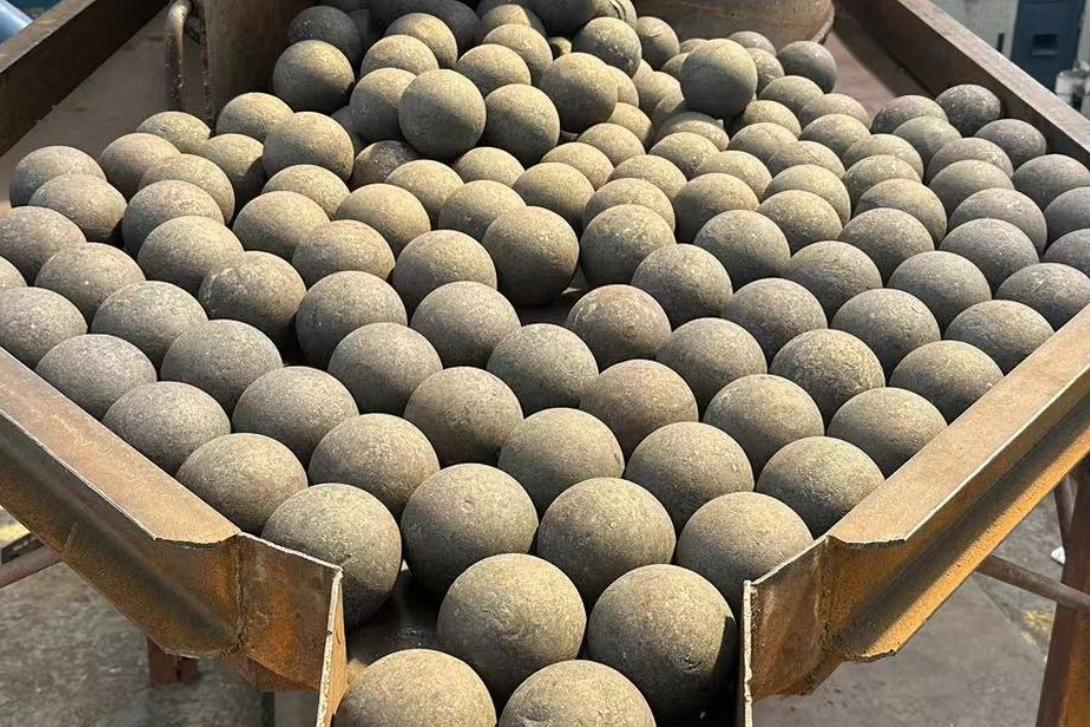

3 inch/3.5 inch/4 inch Hot Rolled Mill Ball

The 3 Inch/3.5 Inch/4 Inch Hot Rolled Mill Ball is crafted for superior durability and performance in demanding milling applications. Manufactured through the hot rolling process, these steel balls feature a consistent structure that enhances their strength and resistance to wear. The hot-rolling method ensures uniform hardness and toughness, allowing the balls to withstand high impact and abrasive forces, making them ideal for industries like mining, cement, and other grinding operations. Their exceptional durability reduces the frequency of replacements and operational downtime, leading to more efficient milling processes.

Contact Now E-Mail Telephone WhatsApp

Product Details

Introduction of the product

The 3 Inch/3.5 Inch/4 Inch Hot Rolled Mill Ball is optimized for improved grinding performance, providing efficient energy transfer during the milling process. With their smooth surface and uniform hardness, these mill balls enhance the breakdown of materials, ensuring consistent particle size reduction and better throughput. This leads to lower energy consumption and reduced operational costs while improving overall productivity. Whether used for fine or coarse grinding, these balls maximize grinding efficiency, contributing to a more effective milling operation.

3 inch/3.5 inch/4 inch Hot Rolled Mill Ball put.

Application in grinding machines and areas

Machines	Industries
·Ball mills	·Mining industry
·SAG mills	·Power stations
·Tower mills	·Cement industry
·Coal grinding machine	·Steel Industry
·Bearing	·Chemical Industry
	·Metallurgical industry

Technical data

Chemical Composition (%)
Steel Specification	C	Mn	Si	Cr	S	P
40Cr	0.37-0.44	0.50-0.80	0.17-0.37	0.80-1.15	≤0.035	≤0.035
42CrMo	0.38-0.45	0.50-0.80	0.17-0.37	0.90-1.25	≤0.035	≤0.035
60Mn	0.57-0.65	0.70-1.00	0.17-0.37	≤0.25	≤0.035	≤0.035
65Mn	0.62-0.72	0.90-1.20	0.17-0.37	≤0.25	≤0.035	≤0.035
#45/C45	0.42-0.54	0.50-0.80	0.17-0.37	≤0.15	≤0.035	≤0.035
ZT-10	0.60-0.78	0.65-1.33	0.25-0.65	≤0.45	≤0.035	≤0.035
B2	0.70-0.92	0.70-1.00	0.17-0.37	0.40-0.70	≤0.035	≤0.035
B3	0.52-0.65	0.66-1.00	1.30-1.90	0.74-1.20	≤0.030	≤0.030
B4	0.65-0.75	0.50-0.70	1.20-1.40	0.85-1.00	≤0.025	≤0.025
B6	0.75-0.90	0.80-1.02	0.17-0.37	0.88-0.98	≤0.035	≤0.035
BU	0.95-1.05	0.95-1.05	0.15-0.35	0.45-0.55	≤0.035	≤0.035
BL	0.55-0.75	0.65-0.85	0.15-0.35	0.70-1.20	≤0.035	≤0.035
BG	0.90-1.05	0.35-0.95	0.15-0.35	1.00-1.70	≤0.035	≤0.035

Physical Features
Diameter (mm) (inches)	Surface Hardness (HRC)	Diameter Tolerance (mm)	Impact Value (J/cm²)	Breakage Rate (%)	Drop Test (times)
20 (0.79)	>60	+2.0 -1.0	≥12	≤1	>15000
25 (0.98)
30 (1.18)
40 (1.57)
50 (1.97)
60 (2.36)		+3.0 -1.5
65(5.56)
70 (2.76)
75 (3.00)
80 (3.15)
90 (3.54)
100 (3.94)		+4.0 -2.0
120 (4.72)	>58
125 (4.92)
140 (5.51)	>55	+5.0 -3.0
150 (5.91)

Quality Control Technology and Equipment

Plants and Production Equipment

Plants and Production Equipment

Exhibitions

Exhibitions

Why choose us

The 3 Inch/3.5 Inch/4 Inch Hot Rolled Mill Ball comes in a range of sizes, allowing you to select the ideal ball size for your specific grinding needs. Whether you require smaller balls for finer grinding or larger ones for coarse material reduction, these balls offer versatile solutions for various milling operations. Additionally, they can be customized in terms of hardness and material composition to suit different grinding conditions, ensuring optimal performance in any application. This flexibility makes them a valuable asset for a wide range of industries and milling processes.
