Alloy Cast Grinding Ball For SAG Mill

The Alloy Cast Grinding Ball For SAG Mill is engineered with a high-quality alloy composition, providing outstanding durability and wear resistance in harsh grinding environments. These grinding balls are made with advanced casting techniques, ensuring a high density and uniform structure that significantly enhances their ability to withstand the heavy impacts and abrasive conditions in SAG (Semi-Autogenous Grinding) mills. The robust alloy content ensures the balls maintain their shape and integrity for longer periods, leading to fewer replacements and reduced maintenance costs in industrial operations such as mining and cement production.

Contact Now E-Mail Telephone WhatsApp

Product Details

Introduction of the product

The Alloy Cast Grinding Ball For SAG Mill is designed to improve grinding efficiency by optimizing the grinding process. The high-quality alloy material enhances the ball's hardness and toughness, ensuring smooth, consistent grinding performance. These balls provide excellent energy transfer during the milling process, ensuring better material breakdown and reduced energy consumption. This optimized grinding action leads to improved throughput and overall mill efficiency, making the Alloy Cast Grinding Ball For SAG Mill an essential tool for achieving higher productivity and cost savings in milling operations.

Alloy Cast Grinding Ball For SAG Mill

Application in grinding machines and areas

Machines	Industries
·Ball mills	·Mining industry
·SAG mills	·Power stations
·Tower mills	·Cement industry
·Coal grinding machine	·Steel Industry
·Bearing	·Chemical Industry
	·Metallurgical industry

Technical data

Chemical Composition (%)
Name		C	Si	Mn	Cr	Mo	S	P	Cu	Ni
High Chromium Alloy Cast Balls	ZQCr26	2.0-3.3	≤1.2	0.3-1.5	23.0-30.0	0-3.0	≤0.06	≤0.10	0-1.2	0-1.5
	ZQCr20	2.0-3.3	≤1.2	0.3-1.5	18.0-23.0	0-3.0	≤0.06	≤0.10	0-1.2	0-1.5
	ZQCr15	2.0-3.3	≤1.2	0.3-1.5	14.0-18.0	0-3.0	≤0.06	≤0.10	0-1.2	0-1.5
	ZQCr12	2.0-3.3	≤1.2	0.3-1.5	10.0-14.0	0-3.0	≤0.06	≤0.10	0-1.2	0-1.5
Middle Chromium Alloy Cast Balls	ZQCr8	2.1-3.3	≤2.2	0.3-1.5	7.0-10.0	0-1.0	≤0.06	≤0.10	0-0.8	-
Middle Chromium Alloy Cast Balls	ZQCr5	2.1-3.3	≤1.5	0.3-1.5	4.0-6.0	0-1.0	≤0.10	≤0.10	0-0.8	-
Low Chromium Alloy Cast Balls	ZQCr2	2.1-3.6	≤1.5	0.3-1.5	1.0-3.0	0-1.0	≤0.10	≤0.10	0-0.8	-
Bainite Alloy Cast Balls	ZQQTB	3.2-3.8	2.0-3.5	2.0-3.0	-	-	≤0.03	≤0.10	-	-
Bainite Alloy Cast Balls	ZQQTM	3.2-3.8	2.0-3.5	0.5-1.5	-	-	≤0.03	≤0.10	-	-

Physical Features
Name		Surface Hardness (HRC)	Impact Value (J/cm²)	Breakage Rate (%)	Diameter Tolerance (mm)	Diameter (mm)	Drop Test (Times)
High Chromium Alloy Cast Balls	ZQCr26	≥58	≥4J	≤1.0	Φ≤30 +1.0 -1.0 30＜Φ≤60 ＋1.5 -1.0 60＜Φ≤80 +2.0 -1.0 80＜Φ≤100 +2.5 -1.0 Φ＞100 +3.0 -1.0	10-160	＞15000
	ZQCr20	≥58	≥4J	≤1.0
	ZQCr15	≥58	≥4J	≤1.0
	ZQCr12	≥58	≥4J	≤1.0
Middle Chromium Alloy Cast Balls	ZQCr8	≥48	≥4J	≤1.0
Middle Chromium Alloy Cast Balls	ZQCr5	≥47	≥4J	≤1.0
Low Chromium Alloy Cast Balls	ZQCr2	≥45	≥4J	≤1.0
Bainite Alloy Cast Balls	ZQQTB	≥50	≥4J	≤1.0
Bainite Alloy Cast Balls	ZQQTM	≥52	≥4J	≤1.0

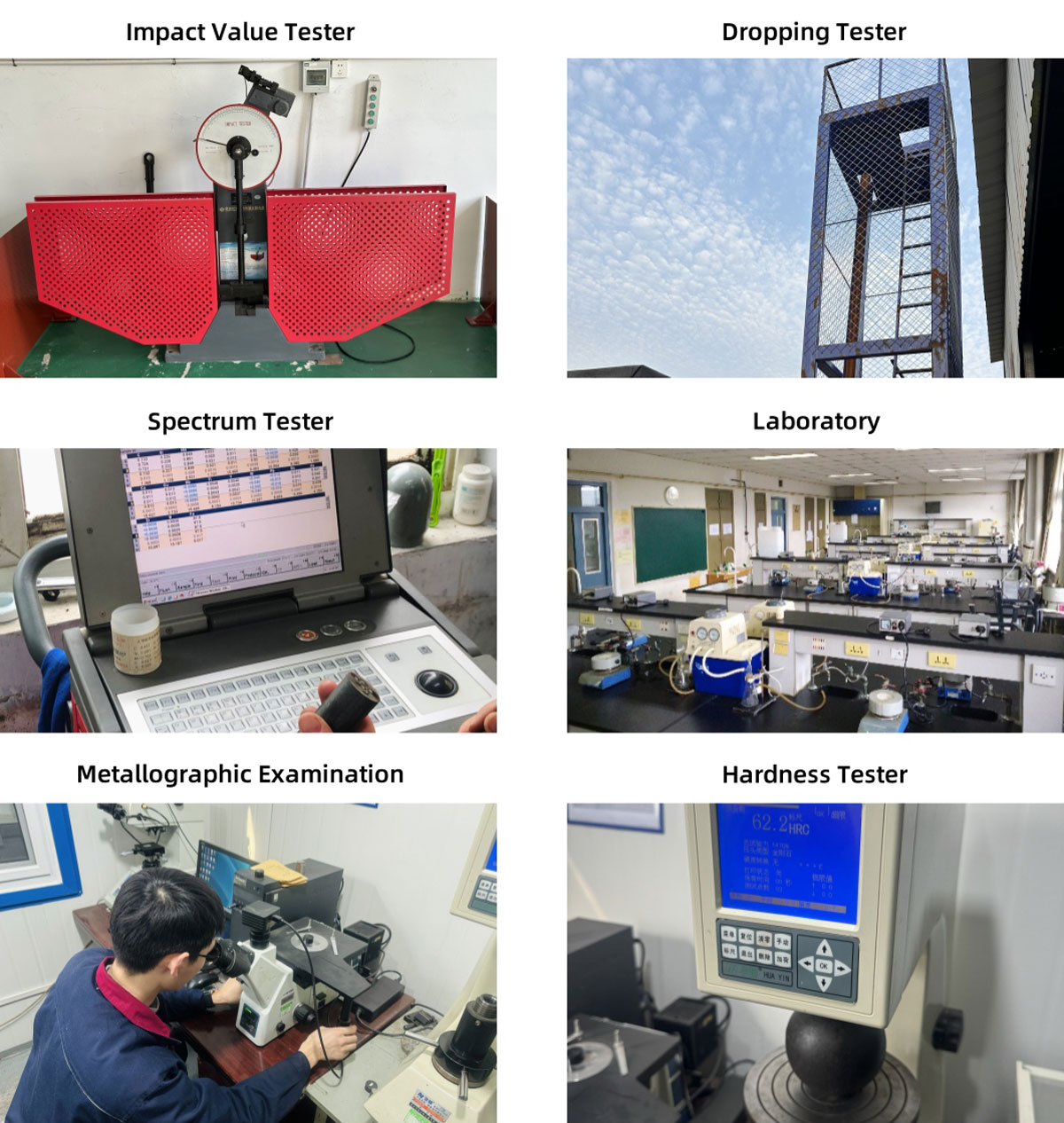

Quality Control Technology and Equipment

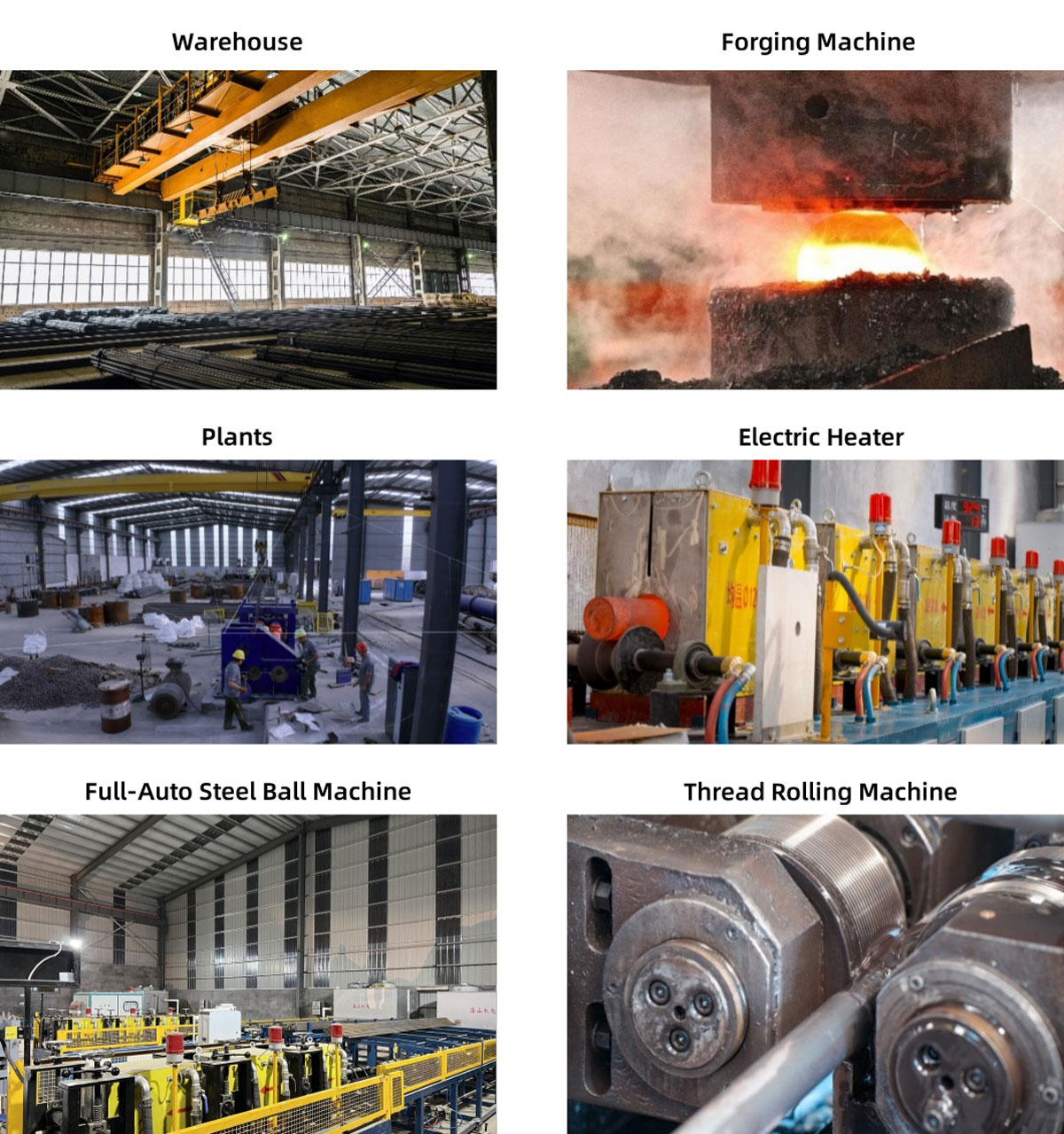

Plants and Production Equipment

Plants and Production Equipment

Exhibitions

Exhibitions

Why choose us

The Alloy Cast Grinding Ball For SAG Mill offers flexibility and can be customized to suit the unique demands of various SAG milling applications. Available in different sizes, hardness levels, and alloy compositions, these grinding balls can be tailored to fit the specific requirements of each mill and grinding environment. Whether for coarse grinding or fine material reduction, the Alloy Cast Grinding Ball For SAG Mill delivers optimal performance, ensuring that it meets the diverse needs of industries like mining, cement, and power generation. Customization allows users to achieve the best balance of performance, wear resistance, and cost-effectiveness for their specific milling applications.
